SPECIFICATION
| Drum Bolt Circle Diameter: | 11.25 in | Balanced: | Yes |
| Drum Bolt Hole Count: | 10 | Drum Brake Surface Flat Depth: | 5.95 in |
| Drum Pilot Diameter: | 8.78 in | Brake Surface Diameter: | 16.50 in |
| Mounting Surface Flange / Back Plate Thickness: | 0.50 in | Mounting Type: | Outboard |
| Drum Weight: | 96 lb | Drum Overall Depth: | 9.04 in |
| Maximum Wear Diameter: | 16.62 in | Drum Bolt Hole Diameter: | 1.31 in |
| Brake Shoe Width: | 5 in | VMRS: | 13002023 |
Product Details

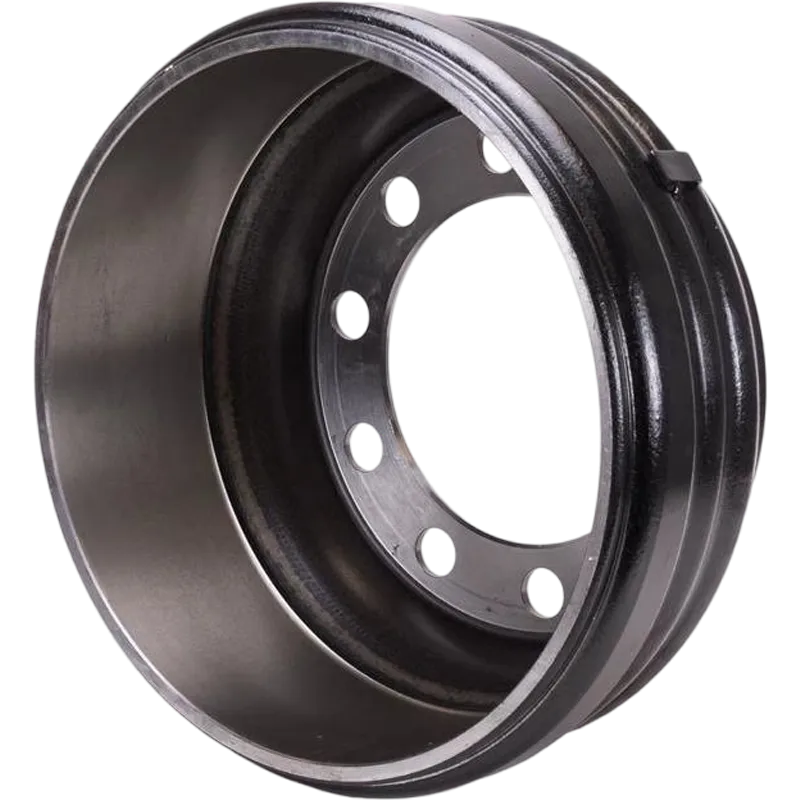

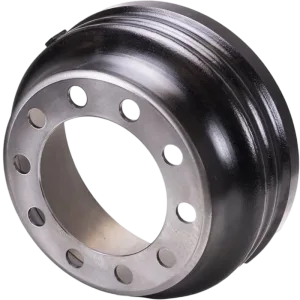

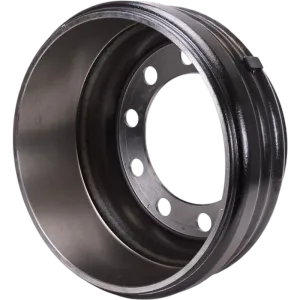

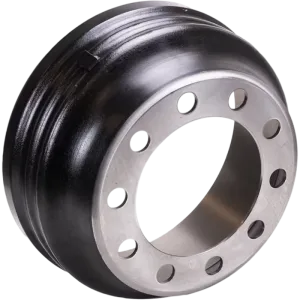

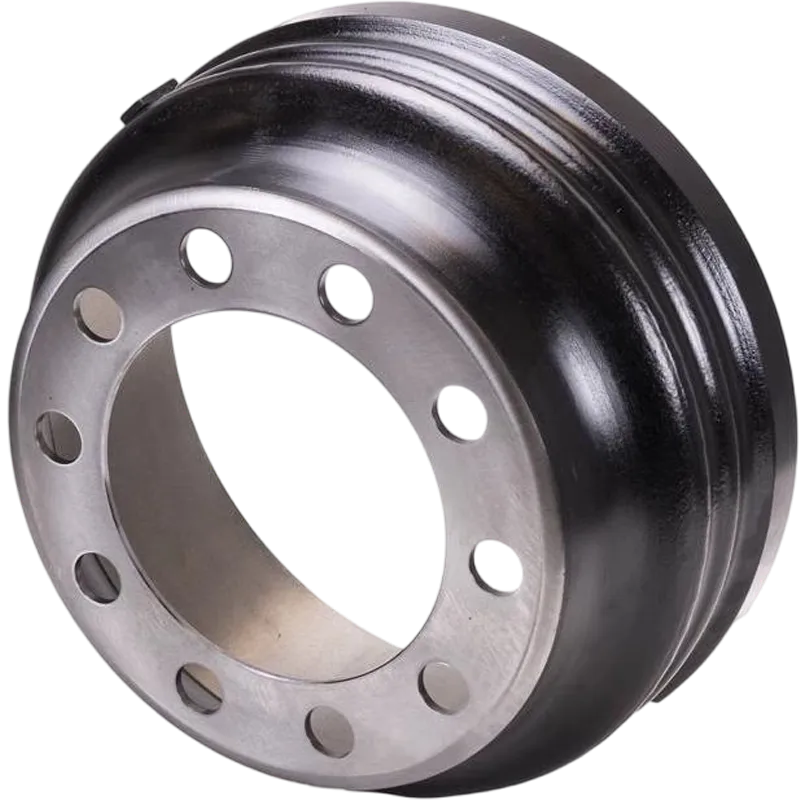

TORLAST New Generation series brake drums address the need for a lightweight, but technically superior, brake drum that will help North America’s fleets cut costs and maximize payloads. The Torlast series composite steel shell brake drums are 20% lighter than standard cast iron drums.
-
- 18 -22 lbs per drum savings
- 100 -300 lbs per vehicle savings
- Backed by a life-time warranty
- All drums are balanced to TMC recommended standards.
- High carbon steel shell with knurled design for better lining layer adhesion
- Meets and exceeds FMVSS 121 requirements and Ford Durability
- Rated up to 23,000 lbs GAWR
FEATURES
- 11.25″ Diameter
- Outboard Mount
- Conforms to SAE Recommended Practices
- Decreases operating costs
- Industry standard for quality wheel end equipment
- Engineered to meet or exceed OEM specifications
- Continually examined and perfected via strict testing for thorough accountability and ultimate performance
- Boosts truck performance
Cross Reference
0202139
107453
123383
123627
1653545C1
1660600C1
1660600C2
2308406
2308704
2605076C1
61222GU
61222WE
ABPN42A1655B
ABPN42A1655BPI
BU2308704
BUSR2308704
DB1655B
DDB1655B
F3HZ1125C
F3HZ1125D
FP3710
GN3710
GU3677
GU3710
GUN3710X
KE3710
KH3710
SIFP3710
SR2308704
WE65710
WE65710B
WEB65710B
WW61222GU
WW61222WE
WW65710B
X61222
XX61222GU
XX61222WE
Warranty
| Warranty Time Period | 1 Year |
| Warranty Code | B |
