SPECIFICATION
| Drum Bolt Hole Diameter: | 1.00 in | Drum Brake Surface Flat Depth: | 7.54 in |
| Drum Pilot Diameter: | 8.78 in | Drum Weight: | 109 lb |
| Drum Overall Depth: | 10.52 in | Drum Bolt Circle Diameter: | 11.25 in |
| Mounting Surface Flange / Back Plate Thickness: | 0.48 in | Brake Shoe Width: | 7 in |
| Balanced: | Yes | Mounting Type: | Outboard |
| Maximum Wear Diameter: | 16.62 in | Brake Surface Diameter: | 16.50 in |
| Drum Bolt Hole Count: | 10 | VMRS: | 13002023 |
Product Details

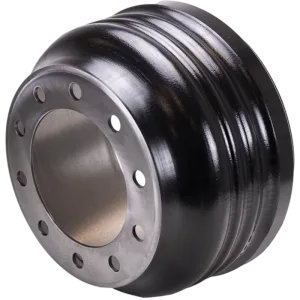

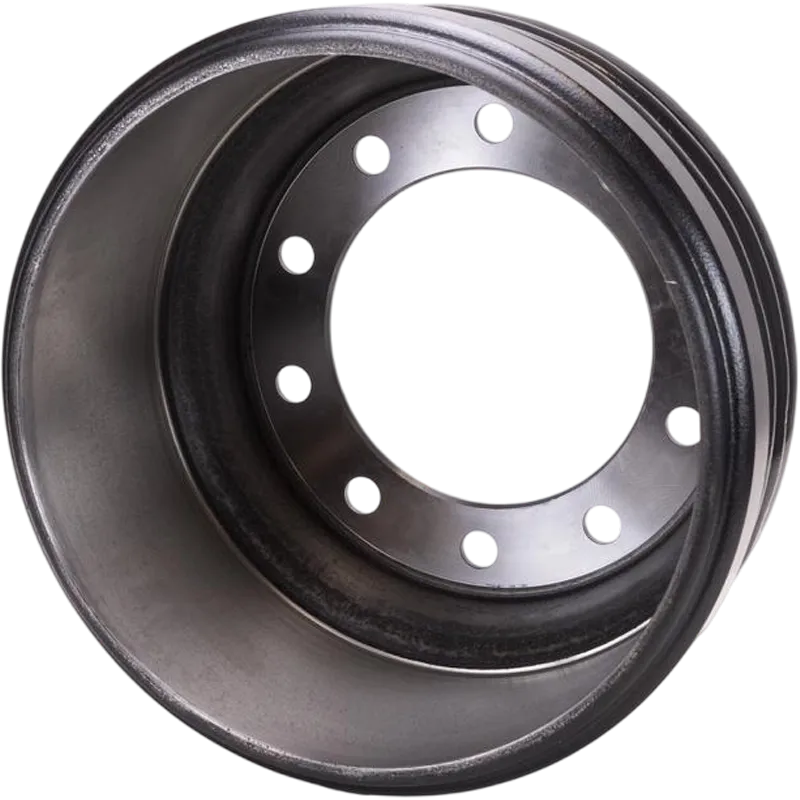

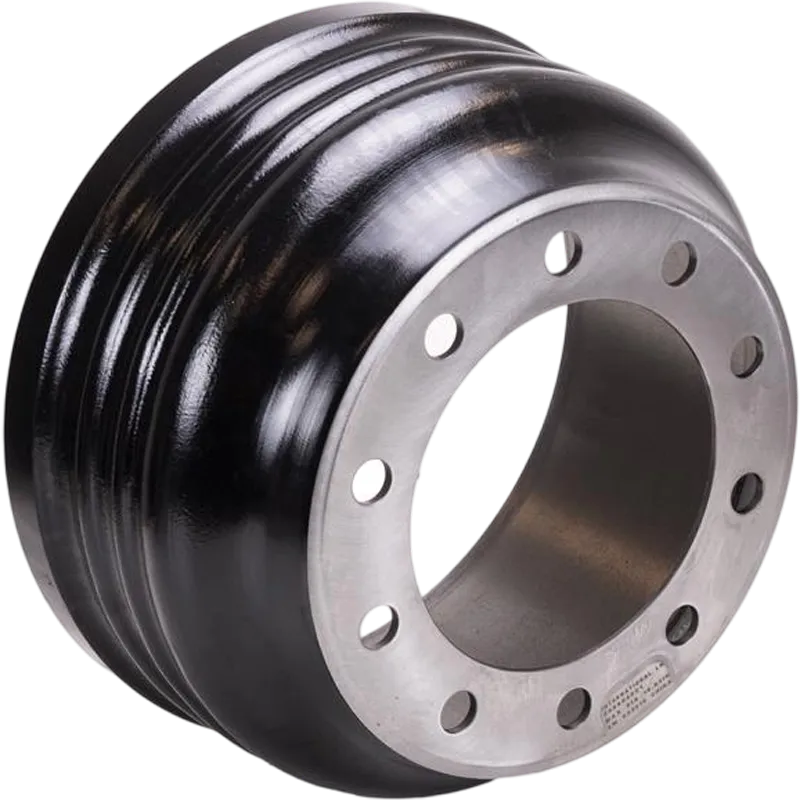

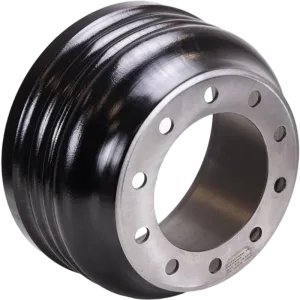

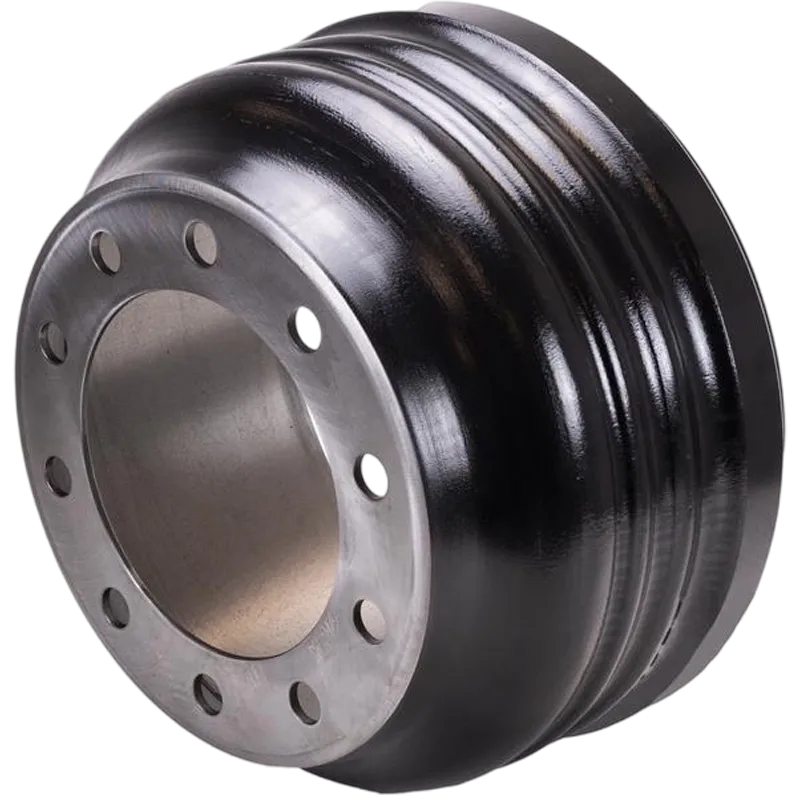

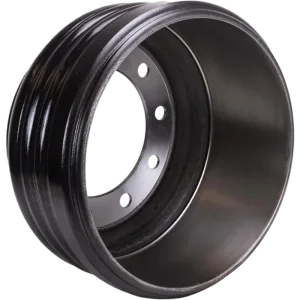

TORLAST New Generation series brake drums address the need for a lightweight, but technically superior, brake drum that will help North America’s fleets cut costs and maximize payloads. The Torlast series composite steel shell brake drums are 20% lighter than standard cast iron drums.
-
- 18 -22 lbs per drum savings
- 100 -300 lbs per vehicle savings
- Backed by a life-time warranty
- All drums are balanced to TMC recommended standards.
- High carbon steel shell with knurled design for better lining layer adhesion
- Meets and exceeds FMVSS 121 requirements and Ford Durability
- Rated up to 23,000 lbs GAWR
FEATURES
- 11.25” bolt circle diameter
- Decreases operating costs
- Casting meets SAE J431 Standard
- Excellent thermal properties to reduce brake fade and provide better drum and lining wear
- Industry standard for quality wheel end equipment
- Exceeds FMVSS 121 Brake Test standards at 23K GAWR
- State of the art machine balancing meets or exceeds the industry standard of 20 in-oz
Cross Reference
0300043
0305449
10030774
10080275
1117787
123207
123363
123537
126949
151.3600AX
1513600AX
1616906C1
1648360C1
1648360C2
1652871C1
16792X
2308709
233566864B20
2605072C1
2608681C1
27645
2808075
3188224
3570AX
42021815
519301
53033018
53303301
5MB236
7006X
76864F
8071947
8075B
8086491
817282
8219326
823585123365002
8JA231
974482
ABPN42A1657B
ABPN42A1657VB
B6864B
BD16.5X7BM
CON10009830
DB1657BSTW
DR66864B
E9HZ1126A
FLT4401B
FVGUN3600AX
GU3576
GU3576X
GU3600AX
GUN3600AX
K12187
K12189
KH3600AX
KH7006X
MDA123207
PROBD16.5X7BM
WB66864B
WE66864B
WE66864B20
WEB66864B20
WLT0300043
WLT1300043
WP66864B20
WW66864B
WW66864F
WW66884B
WWP66864B20
X85123207
XCO31921
| ACCURIDE |
FLT4400B
|
AURORA TRAILER HOLDINGS, LLC |
WEB66864B
|
| AUTOMANN |
15127501
|
BOSAL |
8075
|
| CONMET |
10001776
10009830
|
DURABRAKE |
16792
DB1657B
|
| GUNITE |
3401X
3576
3576X
3600A
3600AX
3922X
|
HDVALUE |
HDV1601B
|
| HME CHASSIS |
89996B
|
KIC |
54261018
60001018
|
| MERITOR |
85123207002
|
MONROE SHOCKS & STRUTS |
66864
|
| OTR |
OTR1601B
OTR1609B
OTR2601B
|
POWER PRODUCTS |
PP1601B
|
| SAS |
107150
|
WALTHER |
1300043
|
| WEBB |
56864B
66864B
66864B20
66864F
66884B
76864B
|
|
Warranty
| Warranty Time Period | 1 Year |
| Warranty Code | B |
