SPECIFICATION
| Drum Weight: | 120 lb | Drum Bolt Hole Count: | 10 |
| Drum Bolt Circle Diameter: | 11.25 in | Drum Pilot Diameter: | 8.78 in |
| Mounting Type: | Outboard | Maximum Wear Diameter: | 16.62 in |
| Balanced: | Yes | Drum Overall Depth: | 11.46 in |
| Brake Shoe Width: | 8.62 in | Drum Bolt Hole Diameter: | 1.00 in |
| Drum Brake Surface Flat Depth: | 9.12 in | Mounting Surface Flange / Back Plate Thickness: | 0.56 in |
| Brake Surface Diameter: | 16.50 in | VMRS: | 013002023 |
Product Details

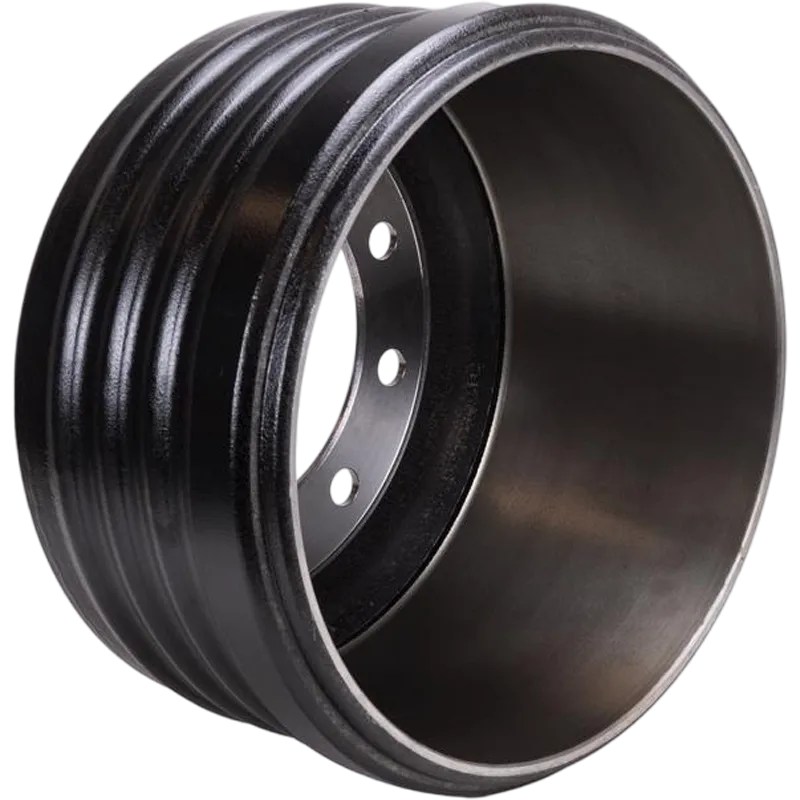

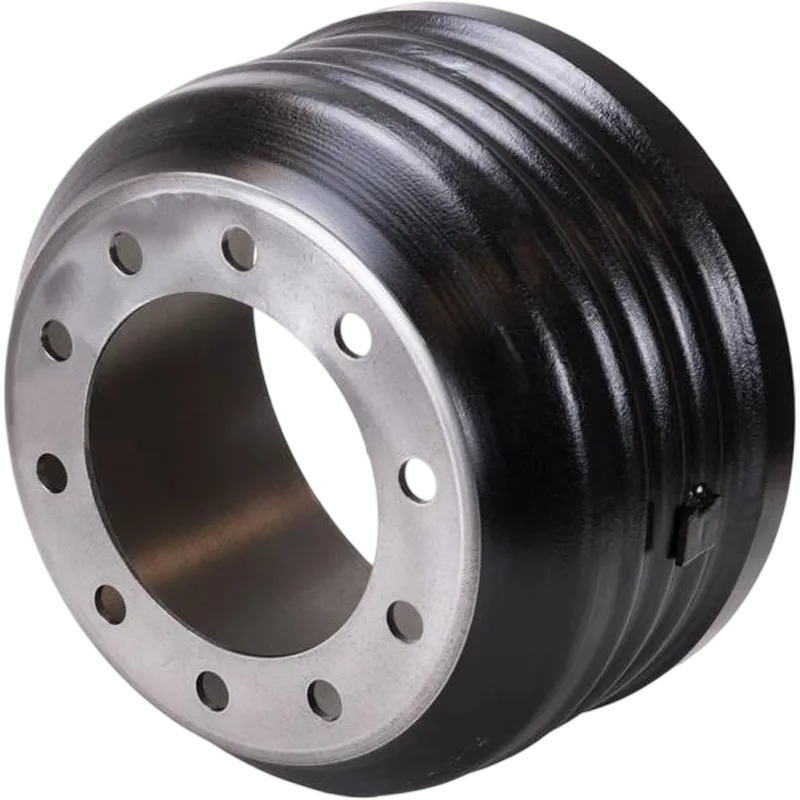

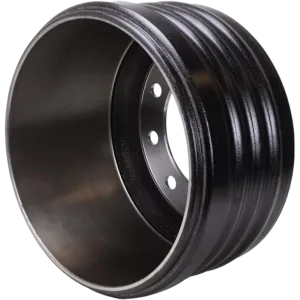

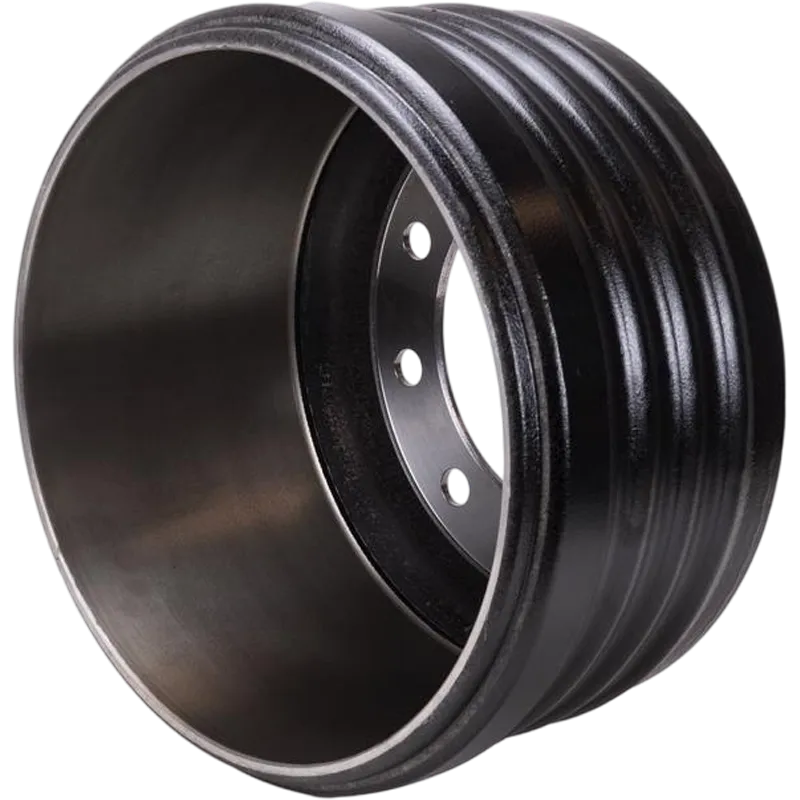

TORLAST New Generation series brake drums address the need for a lightweight, but technically superior, brake drum that will help North America’s fleets cut costs and maximize payloads. The Torlast series composite steel shell brake drums are 20% lighter than standard cast iron drums.
-
- 18 -22 lbs per drum savings
- 100 -300 lbs per vehicle savings
- Backed by a life-time warranty
- All drums are balanced to TMC recommended standards.
- High carbon steel shell with knurled design for better lining layer adhesion
- Meets and exceeds FMVSS 121 requirements and Ford Durability
- Rated up to 23,000 lbs GAWR
FEATURES
- 11.25″ Diameter
- Excellent thermal properties to reduce brake fade and provide better drum and lining wear
- Exceeds FMVSS 121 Brake Test standards at 23K GAWR
- State of the art machine balancing meets or exceeds the industry standard of 20 in-oz
- Built with high-grade cast iron for long service
- Engineered for trailer over-the-road and standard-duty drive applications
- With oil groove
- Experience brake shoe compatibility, minimizing maintenance and downtime
Cross Reference
10080287
107638B
123544
123570
1300060
15036022
2605078C1
3780X
3972312
5499201
61363WE
63123448002
63123510002
640000
66854
66854B20
9003807X
ABPN42A1658625B
APBN42A1658625B
CNM107638
DR66854
GU3807A
GU3807AX
N42A1658625B
WB66854
WB66854B
WB66854F
WE66854
WE66854B
WE66854B20
WEB66854B20
WLT1300060
WW61363WE
WW66854
WW66854B
WW66854F
X61363
XX61363WE
ZBR3807A
ZBR3807X
Warranty
| Warranty Time Period | 1 Year |
| Warranty Code | B |
